Product Catalog
Advanced vision systems and power solutions for critical infrastructure

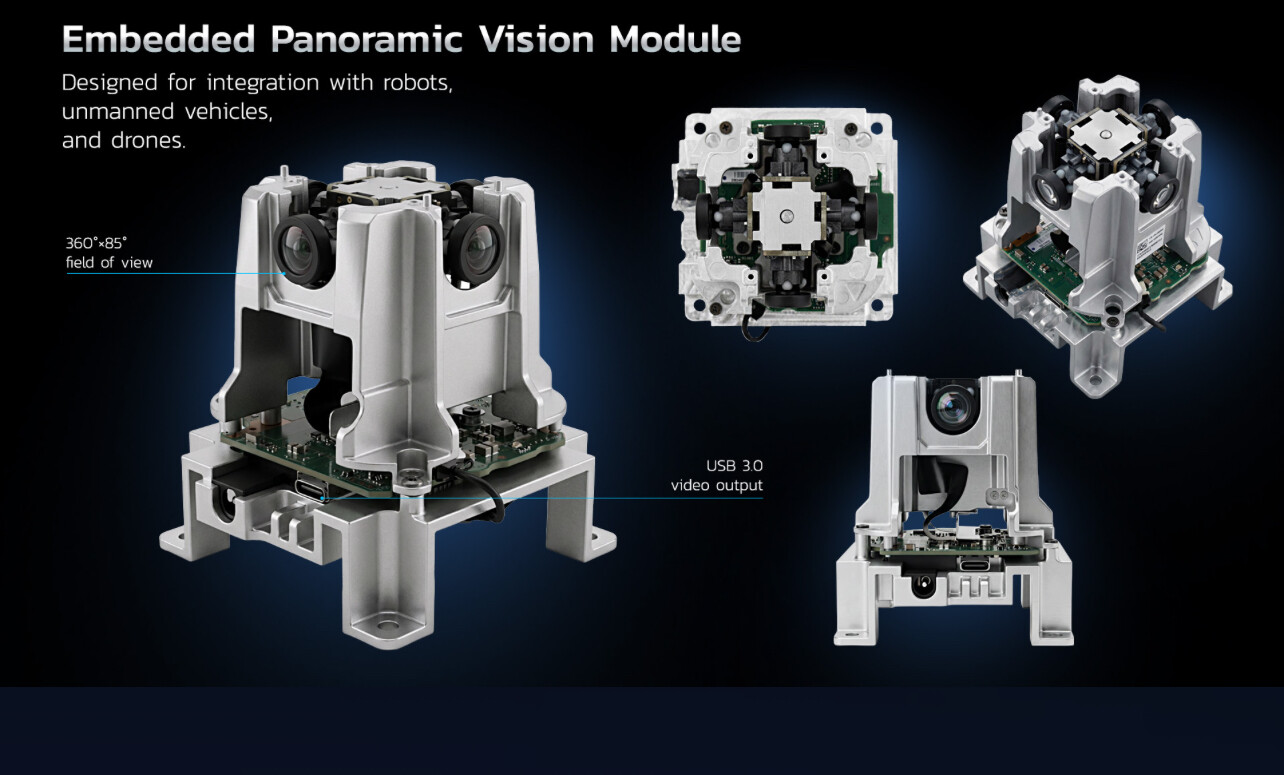

Embedded Panoramic Module
Compact panoramic vision module designed for integration with robots, unmanned vehicles, and drones. Features four ultra-wide angle lenses and AST1235 panorama processor.
Key Features
- Four ultra-wide angle lenses
- AST1235 Multi-Cam Processor
- Real-time panoramic stitching
- USB 3.0 plug-and-play
- SDK for custom integration
Technical Specifications
| Field of View | 360°×85° |
| Sensor | 1/2.7" 5M CMOS x4 |
| Aperture | F2.5 |
| Output | USB 3.0 |
| Video | 4K@30fps / 5.7K@30fps |
| Latency | <10ms stitching |
| Dimensions | 85 x 85 x 120mm |
| Weight | 280g |

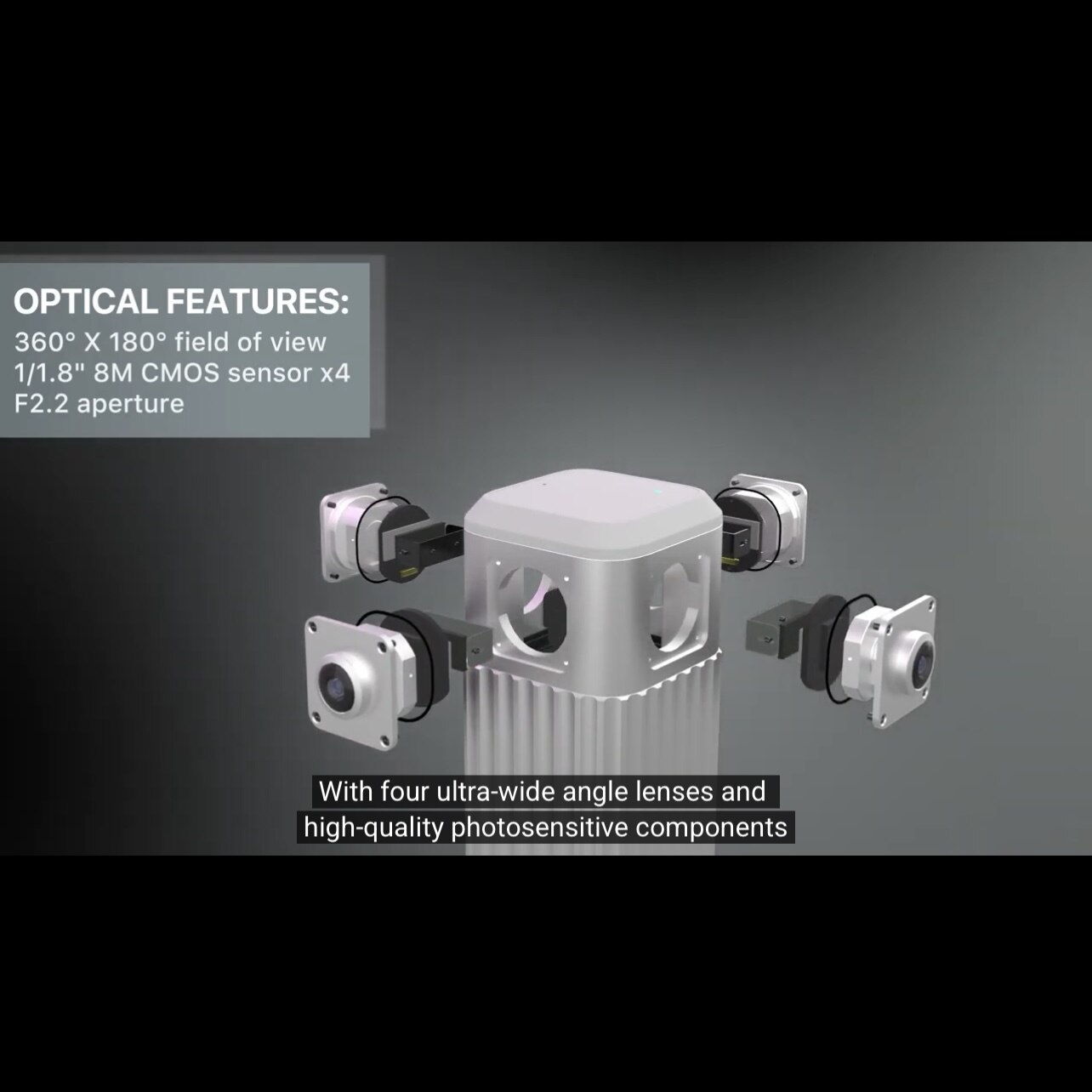

360° Vision Pod Pro
Full spherical coverage vision system with four high-resolution sensors. Ideal for service robots, inspection drones, and security applications.
Key Features
- Complete 360°×180° coverage
- 8MP high-resolution sensors
- Weather-resistant IP64
- Wide temperature operation
- Multiple output interfaces
Technical Specifications
| Field of View | 360°×180° |
| Sensor | 1/1.8" 8M CMOS x4 |
| Aperture | F2.2 |
| Output | USB 3.0 / GigE |
| Video | 4K@30fps / 5.7K@30fps |
| Latency | <10ms stitching |
| Protection | IP64 |
| Operating Temp | -20°C to +60°C |
Robot Vision System
Complete vision solution for autonomous robots. Integrates panoramic cameras, processor, and AI platform for navigation and object detection.
Key Features
- All-in-one vision system
- ROS/ROS2 compatible
- Visual AI platform ready
- Real-time obstacle detection
- Human tracking capability
Technical Specifications
| Field of View | 360°×180° |
| Sensors | 4x 5M CMOS |
| Processor | AST1235 Built-in |
| Output | USB 3.0 / WiFi |
| AI Support | Visual AI Ready |
| Integration | ROS/ROS2 Compatible |
| Power | 12V DC / PoE |
| Mounting | Standard robot interface |

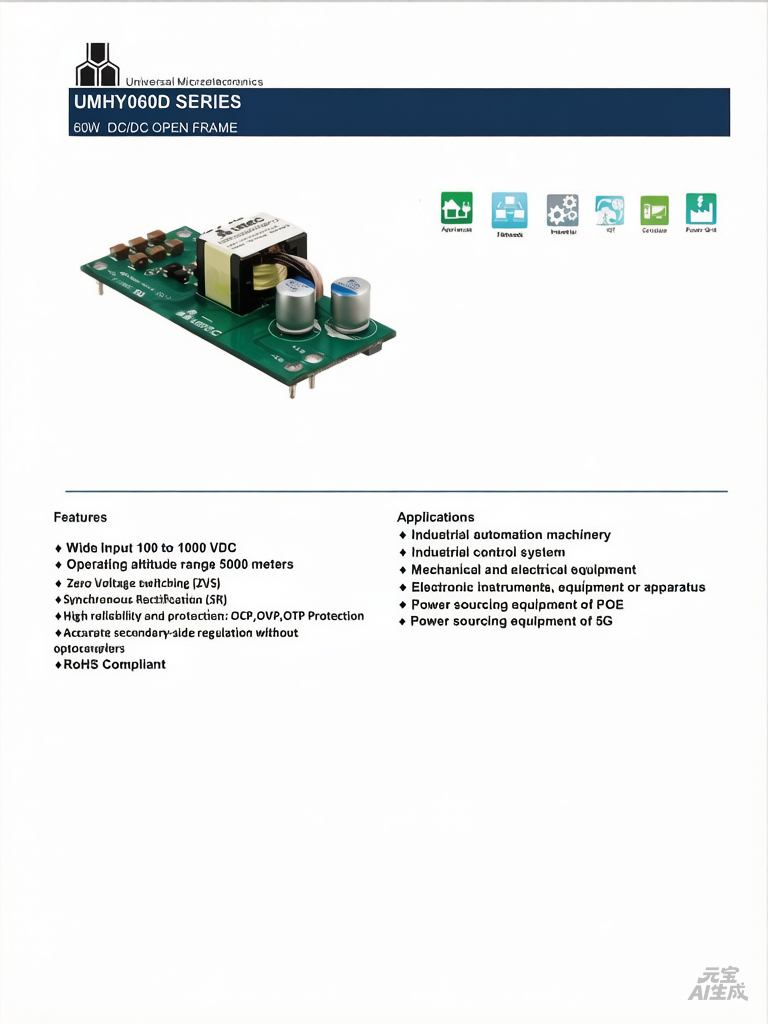

UMHY060D SERIES DC/DC Power Module
Wide input DC/DC open frame power module with 100-1000VDC input range and dual output options (5V/6A or 12V/5A). Features zero voltage switching, synchronous rectification, and comprehensive protection for industrial automation and control systems.
Key Features
- Wide input 100-1000 VDC range
- Zero Voltage Switching (ZVS)
- Synchronous Rectification (SR)
- OCP/OVP/OTP protection
- Secondary-side regulation without optocouplers
- RoHS compliant
- 5000 meters operating altitude
Technical Specifications
| Input Voltage | 100-1000 VDC |
| Output Voltage | 5V / 12V DC |
| Power Output | 30W / 60W |
| Efficiency | 85-89% |
| Operating Altitude | 5000 meters |
| Protection | OCP/OVP/OTP |
| Isolation | 5000 VDC I/O |
| Dimensions | 81.2 x 37.4 x 15.4mm |
| Weight | 50g |
Data Center UPS System
Enterprise-grade uninterruptible power supply for data centers and critical infrastructure. Ensures 99.99% power availability with advanced battery management.
Key Features
- Double conversion online topology
- Hot-swappable battery modules
- Generator compatible
- Network management card
- Advanced surge protection
Technical Specifications
| Capacity | 10kVA - 500kVA |
| Topology | Double Conversion Online |
| Efficiency | 96% ECO mode |
| Battery | Scalable runtime |
| Output PF | 1.0 |
| Communication | SNMP/USB/RS232 |
| Dimensions | Variable by model |
| Weight | Variable by model |
Telecom Power Rectifier
High-efficiency rectifier module for telecommunications base stations and network facilities. Compact design with wide input voltage range.
Key Features
- Universal AC input range
- High power density
- Hot-pluggable design
- Remote monitoring support
- Wide temperature operation
Technical Specifications
| Output Power | 2900W |
| Output Voltage | -48V DC |
| Efficiency | 96% |
| Input Voltage | 85-305V AC |
| Power Factor | >0.99 |
| Cooling | Forced air |
| Dimensions | 41 x 110 x 225mm |
| Weight | 1.8kg |
Rack AI BMC System
Advanced rack-mounted AI BMC (Baseboard Management Controller) system with ETAP-RT Omniverse integration. Provides real-time visualization, predictive analytics, instant alerts, and event traceability for data center infrastructure.
Key Features
- Real-time visualization dashboard
- AI-powered predictive analytics
- Instant alert notifications
- Event traceability and logging
- Rack-mounted industrial design
- ETAP-RT Omniverse integration
Technical Specifications
| Application | Data Center Management |
| AI Platform | ETAP-RT Omniverse |
| Visualization | Real-time Monitoring |
| Features | Predictive Analytics |
| Alert System | Instant Notification |
| Event Tracking | Traceability Support |
| Integration | Rack-mounted Design |
| Display | LCD Control Panel |
